White Alumina Ceramic Star Valve Corrosion Resistance And High Temperature Resistance

Name: White Alumina Ceramic Star Valve Corrosion Resistance And High Temperature Resistance
Brand: HENGYUAN
Price: 1 USD

China White Alumina Ceramic Star Valve Corrosion Resistance And High Temperature Resistance wholesale

Brand Name : HENGYUAN

Model Number : Ceramic Star Valve

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20DAYS

Packaging Details : Carton

Material : Ceramic Star Valve

Color : White

Corrosion Resistance : High Corrosion Resistance

Maximum speed : 42 R/Min

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100

Package : Carton

Contact Now

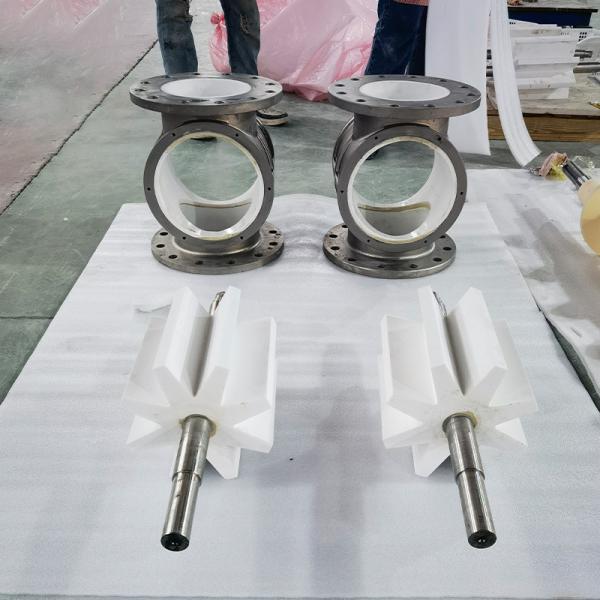

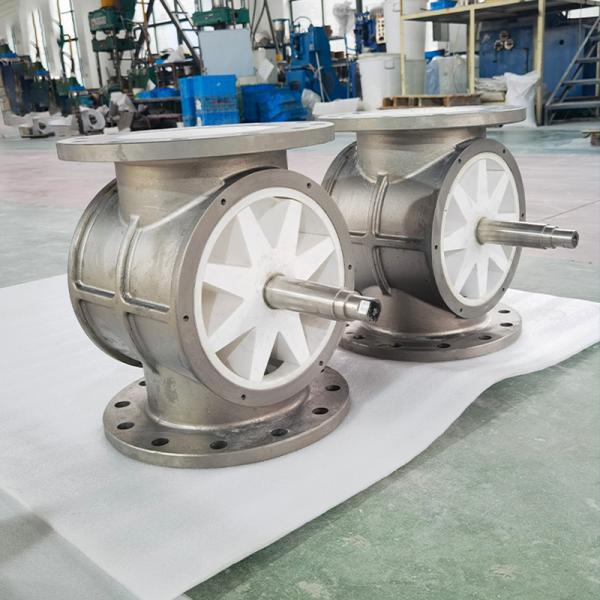

The surface of ceramic star valve is smooth, not easy to adhere to materials, and easy to clean and maintain. Common types of ceramic star valves: slide rod discharge valve/side quick release feeder/high pressure star discharge valve/high temperature star discharger/air lock rotary valve/air delivery slide rod discharge valve/anti-stuck rotary valve.

Number	Specification	Unloaded volume	Minimum speed	Maximum speed
1	DN150	3L	25r/min	42r/min
2	DN200	6L	25r/min	42r/min
3	DN250	10L	25r/min	42r/min
4	DN300	15L	25r/min	42r/min
5	……	……	……	……

Naterial	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
*Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

White Alumina Ceramic Star Valve Corrosion Resistance And High Temperature Resistance
